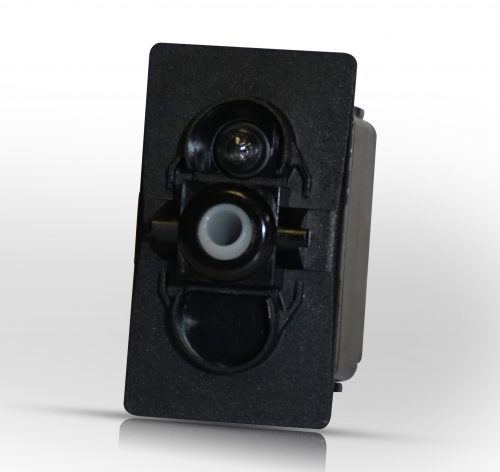

Carling Switch Body: On-Off (Dependent White Lamp)

Genuine Carling ON-OFF Rocker Switch

The V1D1-BC0B is a very common switch. This switch is a Single Pole Single Throw (SPST) and it’s function is ON-OFF.

This switch is illuminated with one white lamp at the top of the switch.

This switch can be used for lights, pumps, turning on radios, turning on electronics, bilge pump, etc. The top lamp acts as an indicator light.

If you’re replacing an existing rocker switch, it should have “V1D1″ stamped on the side. Make sure the old switch has only one light that comes on when the switch is in the “ON” position only.

This is for a rocker switch body only. For switch covers please contact us or check out or website.

• Function: ON-OFF
• Type: SPST (Single Pole Single Throw)
• Terminals: 3
• Light Type: White
• Top Light: Dependent (when switch is pushed to the “on” position, the switch will illuminate)
• Bottom Light: None
• Sealing: IP68 (dust proof and water resistant)
• Voltage Rating: 12v or 24v
• Current Rating: 20 amps, 4-14VDC / 15 amps, 15-28VDC

Wiring Diagram
